说明

最近项目需要使用到swagger，目前官方还没有自己的starter使用，我们上次在文章Swagger2（starter版本）在SpringBoot下的使用使用了程序猿DD翟永超大佬写的spring-boot-starter-swagger版本来通过starter版本更快速的使用Swagger，现在我根据自己的需要也写了一个starter版本，欢迎使用和交流啊(σﾟ∀ﾟ)σ..:*☆哎哟不错哦

源码->https://github.com/Yunlingfly/swagger2-starter

引入->https://search.maven.org/artifact/cn.yunlingfly/swagger-spring-boot-starter/0.1-RELEASE/jar

使用方法戳->https://github.com/Yunlingfly/swagger2-starter#swagger-spring-boot-starter

快速开始

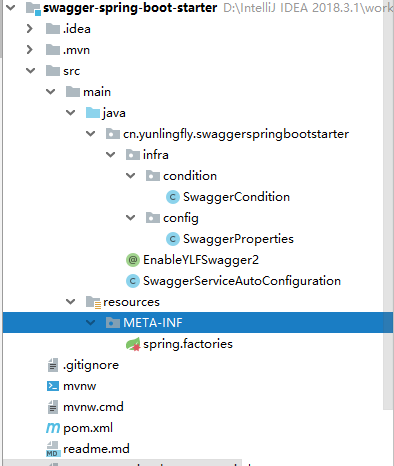

首先给出项目结构

新建springboot项目，更新pom.xml如下（pom详解戳我的另一篇博文->SpringBoot项目发布到Maven中央仓库）

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.3.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>cn.yunlingfly</groupId>
    <artifactId>swagger-spring-boot-starter</artifactId>
    <version>0.1-RELEASE</version>
    <name>swagger-spring-boot-starter</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-autoconfigure</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/com.alibaba/fastjson -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.10</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/io.springfox/springfox-swagger2 -->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.8.0</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.8.0</version>
        </dependency>

        <!-- lombok省略getter、setter方法 -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.6</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <!--<plugin>-->
            <!--<groupId>org.springframework.boot</groupId>-->
            <!--<artifactId>spring-boot-maven-plugin</artifactId>-->
            <!--</plugin>-->
            <!-- Springboot的项目打包给其他项目用的话不能使用自带的打包插件，使用下面的 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
            <!-- sonatype提供了自动release的插件，这意味着运行mvn clean deploy后不用手动去close-> release了，此插件会自动release我们的项目到Maven中央仓库。 -->
            <plugin>
                <groupId>org.sonatype.plugins</groupId>
                <artifactId>nexus-staging-maven-plugin</artifactId>
                <version>1.6.7</version>
                <extensions>true</extensions>
                <configuration>
                    <serverId>oss</serverId>
                    <nexusUrl>https://oss.sonatype.org/</nexusUrl>
                    <autoReleaseAfterClose>true</autoReleaseAfterClose>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

1 首先编写读取yaml配置的SwaggerProperties：

package cn.yunlingfly.swaggerspringbootstarter.infra.config;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

/**
 * Swagger属性配置
 *
 * @author yunlingfly@csdn
 */

@Component
@ConfigurationProperties(prefix = "swagger")
@Data
public class SwaggerProperties {
    /**
     * 标题，必填
     */
    private String title;
    /**
     * 维护人
     */
    private Contact contact = new Contact();
    /**
     * 版本
     */
    private String version;
    /**
     * 描述，必填
     */
    private String description;
    /**
     * swagger扫描的基础包，必填
     */
    private String basePackage = "";
    /**
     * 需要处理的基础URL规则，默认：/**
     */
    private String basePath = "/**";
    /**
     * 需要排除的URL规则，默认：空
     */
    private String excludePath = "";
    /**
     * 许可证
     */
    private String license;
    private String licenseUrl;

    @Data
    public static class Contact {
        /**
         * 维护人名
         */
        private String name;
        /**
         * 维护人email
         */
        private String email;
        /**
         * 维护人url
         */
        private String url;
    }
}

2 编写校验类SwaggerCondition

package cn.yunlingfly.swaggerspringbootstarter.infra.condition;

import org.springframework.context.annotation.Condition;
import org.springframework.context.annotation.ConditionContext;
import org.springframework.core.type.AnnotatedTypeMetadata;
import org.springframework.util.StringUtils;

/**
 * 校验类
 *
 * @author yunlingfly@csdn
 */

public class SwaggerCondition implements Condition {
    @Override
    public boolean matches(ConditionContext context, AnnotatedTypeMetadata metadata) {
        String title = context.getEnvironment().getProperty("swagger.title");
        String description = context.getEnvironment().getProperty("swagger.description");
        String basePackage = context.getEnvironment().getProperty("swagger.base-package");

        if (StringUtils.isEmpty(title)) {
            throw new RuntimeException("Lack of swagger configuration:swagger.title");
        } else if (StringUtils.isEmpty(description)) {
            throw new RuntimeException("Lack of swagger configuration:swagger.description");
        } else if (StringUtils.isEmpty(basePackage)) {
            throw new RuntimeException("Lack of swagger configuration:swagger.base-package");
        } else {
            return true;
        }
    }
}

3 编写自动装配类SwaggerServiceAutoConfiguration

package cn.yunlingfly.swaggerspringbootstarter;

import cn.yunlingfly.swaggerspringbootstarter.infra.condition.SwaggerCondition;
import cn.yunlingfly.swaggerspringbootstarter.infra.config.SwaggerProperties;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Conditional;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.CorsRegistry;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;

/**
 * swagger属性配置
 *
 * @author yunlingfly@csdn
 */

// 装配配置属性
@Configuration
// 自动装配这个properties类，读取yaml自定义内容
@EnableConfigurationProperties(SwaggerProperties.class)
// 校验类
@Conditional(SwaggerCondition.class)
// 当配置文件中 swagger 的值为 true 时，实例化此类。可以不填
@ConditionalOnProperty(prefix = "swagger", value = "true", matchIfMissing = true)
public class SwaggerServiceAutoConfiguration extends WebMvcConfigurationSupport {
    @Autowired
    private SwaggerProperties swaggerProperties;

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                //为当前包路径
                .apis(RequestHandlerSelectors.basePackage(swaggerProperties.getBasePackage()))
                .paths(PathSelectors.any())
                .build();
    }

    //构建 api文档的详细信息函数,注意这里的注解引用的是哪个
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                //页面标题
                .title(swaggerProperties.getTitle())
                //创建人
                .contact(new Contact(swaggerProperties.getContact().getName(), swaggerProperties.getContact().getUrl(), swaggerProperties.getContact().getEmail()))
                //版本号
                .version(swaggerProperties.getVersion())
                //描述
                .description(swaggerProperties.getDescription())
                .build();
    }

    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler(swaggerProperties.getBasePath()).addResourceLocations("classpath:/static/");
        registry.addResourceHandler("swagger-ui.html")
                .addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("/webjars/**")
                .addResourceLocations("classpath:/META-INF/resources/webjars/");
        super.addResourceHandlers(registry);
    }

    // 解决跨域问题
    @Override
    public void addCorsMappings(CorsRegistry registry) {
        registry.addMapping("/**")
                .allowedOrigins("*")
                .allowedMethods("GET", "POST", "PUT", "OPTIONS", "DELETE", "PATCH")
                .allowCredentials(true).maxAge(3600);
    }
}

4 自定义启动注解EnableYLFSwagger2

package cn.yunlingfly.swaggerspringbootstarter;

import org.springframework.context.annotation.Import;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.lang.annotation.*;

/**
 * 启用注解：@EnableYLFSwagger2
 *
 * @author yunlingfly@csdn
 */

@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@Import({SwaggerServiceAutoConfiguration.class})
@EnableSwagger2
public @interface EnableYLFSwagger2 {
}

5 写完后就可以发布到maven中央仓库了（如果只是本地用的话直接install就可以在本地m2仓库找到并引用了）：

mvn clean deploy -P release

测试

1 新建springboot项目，引入依赖

<dependency>
  <groupId>cn.yunlingfly</groupId>
  <artifactId>swagger-spring-boot-starter</artifactId>
  <version>0.1-RELEASE</version>
</dependency>

2 修改application.yml（这里写配置的时候IDEA会有代码提示的哦）：

server:
  port: 8072
swagger:
  # 标题
  title: "Spring Boot 使用 Swagger2 构建RESTful API"
  contact:
    # 维护人
    name: "yunlingfly"
    email: "508821881@qq.com"
    url: "https://www.yunlingfly.cn"
  # 版本
  version: "1.0"
  # 描述
  description: "API 描述"
  # swagger扫描的基础包，默认：全扫描
  base-package: "cn.yunlingfly.test.api.controller"
  # 需要处理的基础URL规则，默认：/**
  base-path: "/**"
  license: "Apache License, Version 2.0"
  license-url: "https://www.apache.org/licenses/LICENSE-2.0.html"

记得在启动类使用注解

package cn.yunlingfly.test;

import cn.yunlingfly.swaggerspringbootstarter.EnableYLFSwagger2;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
@EnableYLFSwagger2
public class TestApplication {

	public static void main(String[] args) {
		SpringApplication.run(TestApplication.class, args);
	}
}

之后就可以随便编写一个controller，然后使用@Api、@ApiOperation、@ApiImplicitParam等注解来丰富swagger了，可以参考我的另一篇博客->Swagger2在SpringBoot下的使用

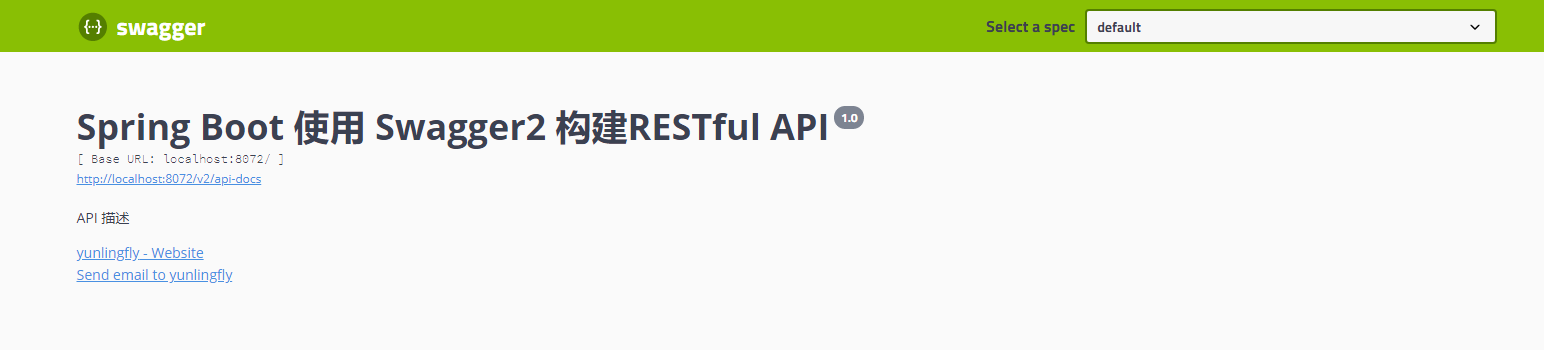

然后就可以启动项目了~，访问http://localhost:8072/swagger-ui.html就可以看到界面了
