springboot集成webSocket

文章目录

依赖包

<dependency>
   <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-websocket</artifactId>
</dependency>

由于新建的项目，pom中少写了几行配置，导致代码中找不到ServerEndpointExporter类，pom少写的配置：

<properties>
	<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
	<java.version>1.8</java.version>
	<maven.compiler.source>1.8</maven.compiler.source>
       <maven.compiler.target>1.8</maven.compiler.target>
</properties>

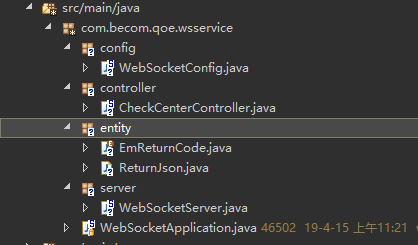

代码结构

在这里插入图片描述

核心代码

WebSocketConfig.java

package com.becom.qoe.wsservice.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.server.standard.ServerEndpointExporter;

/**
 * 开启WebSocket支持
 * This class is used for ...
 * @author leiqianpeng
 * 2019年4月15日 下午4:36:22
 */
@Configuration
public class WebSocketConfig {
	@Bean
    public ServerEndpointExporter serverEndpointExporter() {
        return new ServerEndpointExporter();
    }
}

WebSocketServer.java

package com.becom.qoe.wsservice.server;

import java.io.IOException;
import java.util.concurrent.CopyOnWriteArraySet;

import javax.websocket.OnClose;
import javax.websocket.OnError;
import javax.websocket.OnMessage;
import javax.websocket.OnOpen;
import javax.websocket.Session;
import javax.websocket.server.PathParam;
import javax.websocket.server.ServerEndpoint;

import org.springframework.stereotype.Component;

import com.alibaba.druid.support.logging.Log;
import com.alibaba.druid.support.logging.LogFactory;

@ServerEndpoint("/websocket/{sid}")
@Component
public class WebSocketServer {
	static Log log=LogFactory.getLog(WebSocketServer.class);
    //静态变量，用来记录当前在线连接数。应该把它设计成线程安全的。
    private static int onlineCount = 0;
    //concurrent包的线程安全Set，用来存放每个客户端对应的MyWebSocket对象。
    private static CopyOnWriteArraySet<WebSocketServer> webSocketSet = new CopyOnWriteArraySet<WebSocketServer>();

    //与某个客户端的连接会话，需要通过它来给客户端发送数据
    private Session session;

    //接收sid
    private String sid="";
    /**
     * 连接建立成功调用的方法*/
    @OnOpen
    public void onOpen(Session session,@PathParam("sid") String sid) {
        this.session = session;
        webSocketSet.add(this);     //加入set中
        addOnlineCount();           //在线数加1
        log.info("有新窗口开始监听:"+sid+",当前在线人数为" + getOnlineCount());
        this.sid=sid;
        try {
        	 sendMessage("连接成功");
        } catch (IOException e) {
            log.error("websocket IO异常");
        }
    }

    /**
     * 连接关闭调用的方法
     */
    @OnClose
    public void onClose() {
        webSocketSet.remove(this);  //从set中删除
        subOnlineCount();           //在线数减1
        log.info("有一连接关闭！当前在线人数为" + getOnlineCount());
    }

    /**
     * 收到客户端消息后调用的方法
     *
     * @param message 客户端发送过来的消息*/
    @OnMessage
    public void onMessage(String message, Session session) {
    	log.info("收到来自窗口"+sid+"的信息:"+message);
        //群发消息
        for (WebSocketServer item : webSocketSet) {
            try {
                item.sendMessage(message);
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }

	/**
	 *
	 * @param session
	 * @param error
	 */
    @OnError
    public void onError(Session session, Throwable error) {
        log.error("发生错误");
        error.printStackTrace();
    }
	/**
	 * 实现服务器主动推送
	 */
    public void sendMessage(String message) throws IOException {
        this.session.getBasicRemote().sendText(message);
    }


    /**
     * 群发自定义消息
     * */
    public static void sendInfo(String message,@PathParam("sid") String sid) throws IOException {
    	log.info("推送消息到窗口"+sid+"，推送内容:"+message);
        for (WebSocketServer item : webSocketSet) {
            try {
            	//这里可以设定只推送给这个sid的，为null则全部推送
            	if(sid==null) {
            		item.sendMessage(message);
            	}else if(item.sid.equals(sid)){
            		item.sendMessage(message);
            	}
            } catch (IOException e) {
                continue;
            }
        }
    }

    public static synchronized int getOnlineCount() {
        return onlineCount;
    }

    public static synchronized void addOnlineCount() {
        WebSocketServer.onlineCount++;
    }

    public static synchronized void subOnlineCount() {
        WebSocketServer.onlineCount--;
    }
}

EmReturnCode.java

package com.becom.qoe.wsservice.entity;

/**
 * 接口返回代码 枚举
 */
public enum EmReturnCode {
    SUCCESS("成功",1),
    FAIL("失败",-1);
    // 成员变量
    private String name;
    private int value;

    // 构造方法
    private EmReturnCode(String name, int value) {
        this.name = name;
        this.value = value;
    }

    // 普通方法
    public static String getName(int value) {
        for (EmReturnCode c : EmReturnCode.values()) {
            if (c.getValue() == value) {
                return c.name;
            }
        }
        return null;
    }

    // get set 方法
    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public int getValue() {
        return value;
    }

    public void setValue(int value) {
        this.value = value;
    }
}

ReturnJson.java

package com.becom.qoe.wsservice.entity;

import java.io.Serializable;

public class ReturnJson implements Serializable{

	private static final long serialVersionUID = 1L;
	private String msg;
    private int retcode;
    private Object retObj;
    private boolean success;
    public final static ReturnJson Success = new ReturnJson("操作成功", EmReturnCode.SUCCESS.getValue(), null,true);
    public final static ReturnJson Faild = new ReturnJson("操作失败", EmReturnCode.FAIL.getValue(), null,false);

    public ReturnJson(String msg, int retcode, Object retObj,boolean success) {
        super();
        this.msg = msg;
        this.retcode = retcode;
        this.retObj = retObj;
        this.success = success;
    }

    public ReturnJson(String msg, Object retObj) {
        super();
        this.msg = msg;
        this.retcode = EmReturnCode.SUCCESS.getValue();
        this.retObj = retObj;
        this.success = true;
    }

    public ReturnJson(String msg,boolean success) {
        super();
        this.msg = msg;
        this.retcode = EmReturnCode.SUCCESS.getValue();
        this.retObj = null;
        this.success = success;
    }

	public String getMsg() {
		return msg;
	}

	public int getRetcode() {
		return retcode;
	}

	public Object getRetObj() {
		return retObj;
	}

	public boolean isSuccess() {
		return success;
	}

	public static ReturnJson getSuccess() {
		return Success;
	}

	public static ReturnJson getFaild() {
		return Faild;
	}

	public void setMsg(String msg) {
		this.msg = msg;
	}

	public void setRetcode(int retcode) {
		this.retcode = retcode;
	}

	public void setRetObj(Object retObj) {
		this.retObj = retObj;
	}

	public void setSuccess(boolean success) {
		this.success = success;
	}

}

CheckCenterController

package com.becom.qoe.wsservice.controller;

import java.io.IOException;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.servlet.ModelAndView;

import com.becom.qoe.wsservice.entity.ReturnJson;
import com.becom.qoe.wsservice.server.WebSocketServer;


@Controller
@RequestMapping("/checkcenter")
public class CheckCenterController {
	//页面请求
	@GetMapping("/socket/{cid}")
	public ModelAndView socket(@PathVariable String cid) {
		ModelAndView mav=new ModelAndView("/socket");
		mav.addObject("cid", cid);
		return mav;
	}
	//推送数据接口
	@ResponseBody
	@RequestMapping("/socket/push/{cid}")
	public ReturnJson pushToWeb(@PathVariable String cid,String message) {
		try {
			WebSocketServer.sendInfo(message,cid);
		} catch (IOException e) {
			e.printStackTrace();
			return ReturnJson.Faild;
		}
		return ReturnJson.Success;
	}
}

前端代码：

<!DOCTYPE html>
<html>
  <head>
    <meta charset="utf-8">
  </head>
  <body>

    <div id="app"></div>
    <!-- built files will be auto injected -->
  </body>
</html>
<script>
var socket;
if(typeof(WebSocket) == "undefined") {
    console.log("您的浏览器不支持WebSocket");
}else{
    console.log("您的浏览器支持WebSocket");
      //实现化WebSocket对象，指定要连接的服务器地址与端口  建立连接
        socket = new WebSocket("ws://172.16.16.199:8771/websocket/20");
        //socket = new WebSocket("${basePath}websocket/${cid}".replace("http","ws"));
        //打开事件
        socket.onopen = function() {
            console.log("Socket 已打开");
            //socket.send("这是来自客户端的消息" + location.href + new Date());
        };
        //获得消息事件
        socket.onmessage = function(msg) {
            console.log(msg.data);
            //发现消息进入    开始处理前端触发逻辑
        };
        //关闭事件
        socket.onclose = function() {
            console.log("Socket已关闭");
        };
        //发生了错误事件
        socket.onerror = function() {
            alert("Socket发生了错误");
            //此时可以尝试刷新页面
        }
        //离开页面时，关闭socket
        //jquery1.8中已经被废弃，3.0中已经移除
        // $(window).unload(function(){
        //     socket.close();
        //});
}
</script>

测试

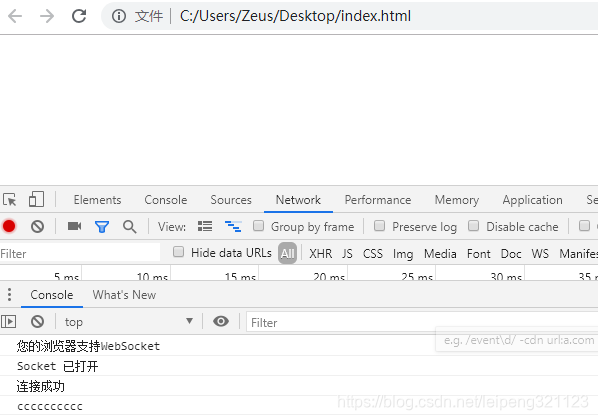

1.打开上面写的前端页面：
在这里插入图片描述

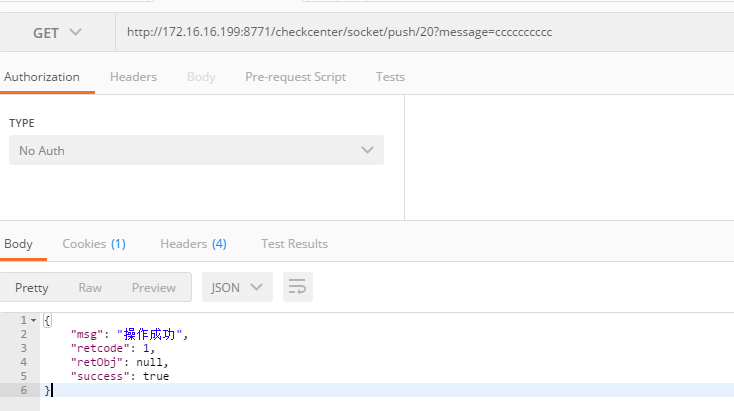

2.使用postman推送消息：
在这里插入图片描述
3.返回浏览器，可查看到浏览器已经接收到消息了
在这里插入图片描述
