<!--spring-cloud-hystrix 服务保护-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-hystrix</artifactId>
</dependency>
@EnableCircuitBreaker
package com.hx.order;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;
@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients(basePackages="com.hx.order.client")
@EnableCircuitBreaker
public class OrderApplication {
public static void main(String[] args) {
SpringApplication.run(OrderApplication.class, args);
}
}
其实也可以用@SpringCloudApplication来代替上面的三个注解:
package com.hx.order;
import org.springframework.boot.SpringApplication;
import org.springframework.cloud.client.SpringCloudApplication;
import org.springframework.cloud.openfeign.EnableFeignClients;
@EnableFeignClients(basePackages="com.hx.order.client")
@SpringCloudApplication
public class OrderApplication {
public static void main(String[] args) {
SpringApplication.run(OrderApplication.class, args);
}
}
@SpringCloudApplication源码(已经包含了这三个注解)
package com.hx.order.controller;
import com.netflix.hystrix.contrib.javanica.annotation.DefaultProperties;
import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;
import com.netflix.hystrix.contrib.javanica.annotation.HystrixProperty;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;
import java.util.Arrays;
/**
* 服务管理----熔断限流降级
*/
@RestController
@DefaultProperties(defaultFallback = "defaultFallback")
public class HystrixController {
/**
* RestTemplate 发起的http请求
* 降级就是捕捉异常(自定义可以抛出异常,就会降级)
* 超时时间设置为3秒
* @return
*/
@HystrixCommand(commandProperties = {
@HystrixProperty(name = "execution.isolation.thread.timeoutInMilliseconds",value = "3000")
})
@GetMapping("/getProductInfoList")
public String getProductInfoList() {
RestTemplate restTemplate = new RestTemplate();
return restTemplate.postForObject("http://127.0.0.1:8052/product/listForOrder",
Arrays.asList("123"),
String.class);
}
@HystrixCommand
@GetMapping("/get")
public String get() {
throw new RuntimeException("error");
}
@HystrixCommand(fallbackMethod = "fallback")
@GetMapping("/query")
public String query() {
throw new RuntimeException("error");
}
private String fallback() {
return "太拥挤了,请稍后再试~~";
}
private String defaultFallback() {
return "默认提示:太拥挤了,请稍后再试~~";
}
}
1.@HystrixCommand(fallbackMethod = "fallback") 有属性fallbackMethod的时候就会查找定义的失败方法进行降级。 2.如果没有,也就是直接加@HystrixCommand,注解就需要再在类的上面添加@DefaultProperties(defaultFallback = "defaultFallback") 3.超时设置:3秒 ,如果在调用的接口上面添加线程阻塞2秒,就会调用失败,因为Hystrix默认调用时间时1秒。
@HystrixCommand(commandProperties = {
@HystrixProperty(name = "execution.isolation.thread.timeoutInMilliseconds",value = "3000")
})
@HystrixCommand(commandProperties = {
@HystrixProperty(name = "circuitBreaker.enabled",value = "true"),
@HystrixProperty(name = "circuitBreaker.requestVolumeThreshold",value = "10"),
@HystrixProperty(name = "circuitBreaker.sleepWindowInMilliseconds",value = "10000"),
@HystrixProperty(name = "circuitBreaker.errorThresholdPercentage",value = "60")
})
circuitBreaker.enabled=true 开启熔断器 circuitBreaker.requestVolumeThreshold=10 请求量保留10 circuitBreaker.sleepWindowInMilliseconds=10000 休眠10s circuitBreaker.errorThresholdPercentage=60 错误阈值百分比=60
spring:
application:
name: order
cloud:
config:
discovery:
enabled: true
service-id: CONFIG
profile: dev
eureka:
client:
service-url:
defaultZone: http://localhost:8761/eureka/

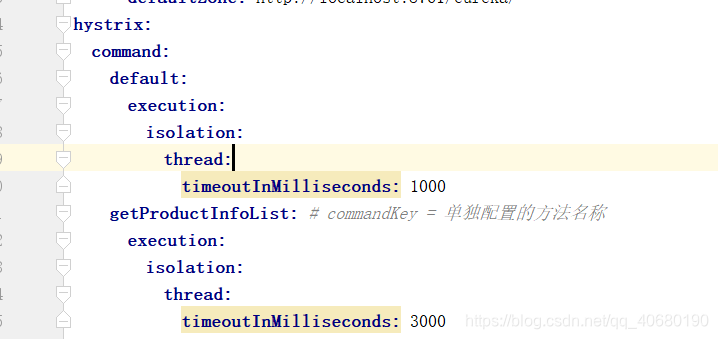

hystrix:
command:
default:
execution:
isolation:
thread:
timeoutInMilliseconds: 1000
getProductInfoList: # commandKey = 单独配置的方法名称
execution:
isolation:
thread:
timeoutInMilliseconds: 3000
feign:
hystrix:
enabled: true
feign-hystrix的使用
1.因为feign内置了hystrix,所有直接配置就可以。
feign:
hystrix:
enabled: true
2.然后在@FeignClient注解添加属性 fallbac=xxx.class,自定义这个类现在这个接口,在接口上添加spring注解@Component,再在实现的方法里面实现你处理错误的逻辑。
这里是内部类案例 -ProductClientFallback
package com.hx.order.client;
import com.hx.order.dataobject.ProductInfo;
import com.hx.order.dto.CartDTO;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.stereotype.Component;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import java.util.List;
import java.util.Map;
@FeignClient(name = "product",fallback =ProductClient.ProductClientFallback.class) //添加此注解说明是服务调用 name是服务的名称
public interface ProductClient {
@PostMapping("/product/listForOrder")
//用来识别调用的接口
List<ProductInfo> listForOrder(@RequestBody List<String> productIdList);
@PostMapping("/product/decreseStock")
Boolean decreseStock(@RequestBody List<CartDTO> cartDTOList);
/**内部类
*
*/
@Component
static class ProductClientFallback implements ProductClient{
@Override
public List<ProductInfo> listForOrder(List<String> productIdList) {
return null;
}
@Override
public Boolean decreseStock(List<CartDTO> cartDTOList) {
return false;
}
}
}
3.如果你当前服务是依赖的是别的服务,需要在你的启动类上添加包扫描的注解:
@ComponentScan(basePackages = "com") //此注解的作用就是把包扫描的范围扩大到com,也就可以把依赖过来的包也扫描上,如果就是当前服务就不需要添加。
package com.hx.order;
import org.springframework.boot.SpringApplication;
import org.springframework.cloud.client.SpringCloudApplication;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.context.annotation.ComponentScan;
@EnableFeignClients(basePackages="com.hx.order.client")
@SpringCloudApplication
@ComponentScan(basePackages = "com") //此注解的作用就是把包扫描的范围扩大到com,也就可以把依赖过来的包也扫描上
public class OrderApplication {
public static void main(String[] args) {
SpringApplication.run(OrderApplication.class, args);
}
}
<!--spring-cloud-hystrix-dashboard 服务熔断看板-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-hystrix-dashboard</artifactId>
<version>1.4.7.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
如果引入过spring-cloud-starter-stream-rabbit,这个,下面的actuator就可以不需要引入了,因为stream里面引入过这个组件。
启动类上面添加注解
@EnableHystrixDashboard 如果添加失败,再添加依赖
<!--由于是spring boot 2.0.X版本问题-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
</dependency>
因为用的是boot2.0所有添加配置文件
management:
endpoints:
web:
exposure:
include: ["health","info","hystrix.stream"]

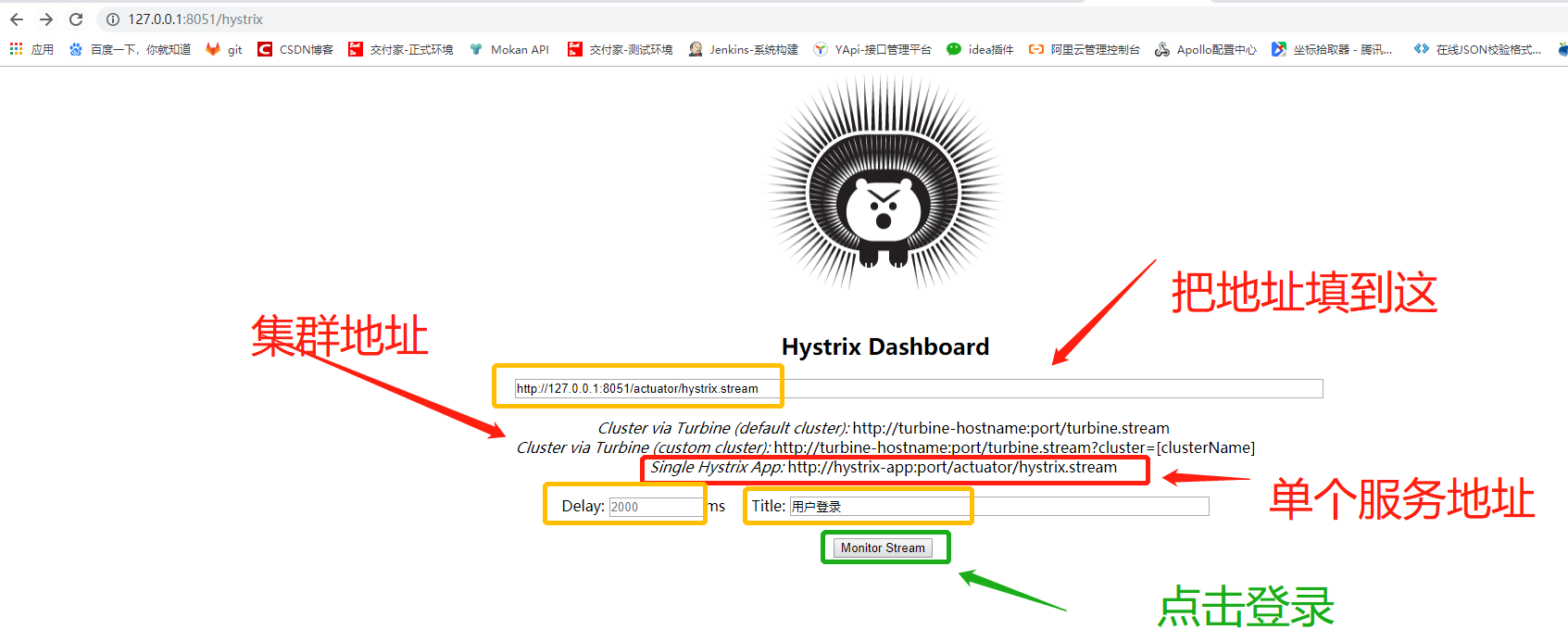

启动服务访问localhost:port[你的端口号]/hystrix
上面的0代表什么意思呢,就和页面上面的,颜色是一一对应的。
